Reconstructing a Neuronpedia dashboard, panel by panel

Reconstructing a Neuronpedia dashboard, panel by panel#

Part 3 of 4. Time to cash in Parts 1–2 on the real thing. Our target is this exact page:

gemma-3-1b / 13-gemmascope-2-res-16k / 7447

We’ll load the actual GemmaScope-2 SAE for Gemma 3 1B, run the model on text, and rebuild every panel of that dashboard from scratch — proving we understand exactly what each number and plot means. Spoiler from Part 1: latent 7447 is a “fruit” feature.

This notebook needs a GPU + gated model access (won’t run in the site build)

The cells below load google/gemma-3-1b-pt and the google/gemma-scope-2-1b-pt SAE, so they’re marked not to execute during the site build — the outputs you see were produced on an NVIDIA B300. To run it yourself: accept the Gemma license, huggingface-cli login, pip install transformers datasets safetensors, and run top to bottom.

Here’s the page we’re reconstructing (live embed):

Setup: load Gemma 3 1B and the real GemmaScope-2 SAE#

The dashboard’s SAE is resid_post, layer 13 (the canonical mid layer of Gemma 3 1B’s 26 layers), width 16k. GemmaScope releases three L0 variants (small/medium/big); Neuronpedia serves the medium one (l0 ≈ 60). Its stored parameters are exactly the JumpReLU pieces from Part 2 — w_enc, w_dec, b_enc, b_dec, threshold — and the inference forward is acts = relu(x·W_enc + b_enc) * (pre > threshold).

import torch, torch.nn as nn, torch.nn.functional as F, numpy as np
import matplotlib.pyplot as plt
from transformers import AutoModelForCausalLM, AutoTokenizer
from huggingface_hub import hf_hub_download
from safetensors.torch import load_file
from IPython.display import HTML, display

DEV = "cuda"
MODEL_ID, LAYER, D_MODEL, LATENT = "google/gemma-3-1b-pt", 13, 1152, 7447
torch.set_grad_enabled(False)   # everything here is inference

tok = AutoTokenizer.from_pretrained(MODEL_ID)
model = AutoModelForCausalLM.from_pretrained(MODEL_ID, dtype=torch.bfloat16, device_map=DEV).eval()

class JumpReLUSAE(nn.Module):
    #  the exact GemmaScope inference forward (threshold is a fixed learned constant)
    def __init__(self, d_model, d_sae):
        super().__init__()
        self.W_enc = nn.Parameter(torch.zeros(d_model, d_sae))
        self.W_dec = nn.Parameter(torch.zeros(d_sae, d_model))
        self.b_enc = nn.Parameter(torch.zeros(d_sae))
        self.b_dec = nn.Parameter(torch.zeros(d_model))
        self.threshold = nn.Parameter(torch.zeros(d_sae))
    def encode(self, x):
        pre = x @ self.W_enc + self.b_enc
        return F.relu(pre) * (pre > self.threshold)
    def decode(self, a): return a @ self.W_dec + self.b_dec
    def forward(self, x):
        a = self.encode(x); return self.decode(a), a

def load_official_sae(variant="medium"):
    p = hf_hub_download("google/gemma-scope-2-1b-pt",
                        f"resid_post/layer_{LAYER}_width_16k_l0_{variant}/params.safetensors")
    P = load_file(p); sae = JumpReLUSAE(D_MODEL, P["w_enc"].shape[1])
    for k in ["W_enc","W_dec","b_enc","b_dec","threshold"]:
        getattr(sae, k).data = P[k.lower()]
    return sae.to(DEV)

sae = load_official_sae("medium")
print("SAE:", sae.W_enc.shape[1], "latents |", "d_model", D_MODEL)

SAE: 16384 latents | d_model 1152

We grab the residual stream at the output of block 13 with a forward hook — that’s the site the SAE was trained on (model.layers.13.output).

class ResidCatcher:
    def __init__(self, model, layer):
        self.acts = None
        self.h = model.model.layers[layer].register_forward_hook(self._hook)
    def _hook(self, m, i, o): self.acts = (o[0] if isinstance(o, tuple) else o).detach()
    def remove(self): self.h.remove()

cat = ResidCatcher(model, LAYER)

@torch.no_grad()
def resid_of(input_ids, attn_mask=None):
    model(input_ids=input_ids, attention_mask=attn_mask)
    return cat.acts.float()

# sanity check: latent 7447 should fire on fruit and be silent on finance
for txt in ["I love eating fruit like apples 🍎 and bananas 🍌 and grapes 🍇.",
            "The committee reviewed the quarterly financial report."]:
    ids = tok(txt, return_tensors="pt").input_ids.to(DEV)
    x = resid_of(ids)[0]; recon, acts = sae(x)
    a = acts[1:]                                   # drop BOS
    toks = [tok.decode([t]) for t in ids[0].tolist()]
    fires = [(toks[i], round(acts[i, LATENT].item(), 1)) for i in range(len(toks)) if acts[i, LATENT] > 0]
    print(f"L0={ (a>0).float().sum(-1).mean():.0f} | latent {LATENT} fires on: {fires}")

L0=67 | latent 7447 fires on: [(' fruit', 425.9), (' apples', 223.0), ('🍎', 92.0), (' bananas', 120.8), ('🍌', 64.5), (' grapes', 137.3), ('🍇', 85.3)]
L0=64 | latent 7447 fires on: []

There it is: latent 7447 lights up on fruit / apples / bananas / grapes (and the emojis), fires not at all on the finance sentence, and the overall L0 is in the 60s — in line with the SAE’s advertised ≈60. Now the panels.

Panel A — Positive & Negative Logits#

The top-left of the dashboard lists the tokens a latent most promotes (positive logits) and suppresses (negative logits). This is the logit lens on the latent’s decoder direction: take the feature direction \(\mathbf{d}=W_{\text{dec}}[i]\), push it through the model’s final RMSNorm gain and unembedding, and read off the vocabulary logits it adds:

\[\text{logit-weights} \;=\; \big((1+\mathbf{w}_{\text{norm}})\odot \mathbf{d}\big)\, W_U .\]

The \((1+\mathbf{w}_{\text{norm}})\) factor folds in Gemma’s final-layer RMSNorm gain (Gemma parameterises RMSNorm as \(1+\text{weight}\)); \(W_U\) is the (tied) unembedding. Caveat: this is only a clean story for late-ish layers and token-level features — it says what the feature does if written straight to the output, ignoring the dozen-odd layers still to come.

base = model.model
normw = base.norm.weight.detach().float().to(DEV)             # final RMSNorm gain (Gemma: 1+w)
W_U   = base.embed_tokens.weight.detach().float().T.to(DEV)   # tied unembedding [d_model, vocab]

d = sae.W_dec[LATENT].float() * (1.0 + normw)
logit_w = d @ W_U                                             # [vocab]

k = 10
pos_v, pos_i = logit_w.topk(k)
neg_v, neg_i = logit_w.topk(k, largest=False)
pos = [tok.decode([i]) for i in pos_i.tolist()]
neg = [tok.decode([i]) for i in neg_i.tolist()]

fig, ax = plt.subplots(1, 2, figsize=(11, 3.6))
ax[0].barh(range(k), neg_v.flip(0).cpu(), color="tab:red");   ax[0].set_yticks(range(k)); ax[0].set_yticklabels(neg[::-1]); ax[0].set_title("Negative logits (suppressed)")
ax[1].barh(range(k), pos_v.flip(0).cpu(), color="tab:green"); ax[1].set_yticks(range(k)); ax[1].set_yticklabels(pos[::-1]); ax[1].set_title("Positive logits (promoted)")
plt.tight_layout(); plt.show()
print("Top promoted tokens:", pos)

/tmp/ipykernel_17797/3164938096.py:17: UserWarning: Glyph 2476 (\N{BENGALI LETTER BA}) missing from font(s) DejaVu Sans.
  plt.tight_layout(); plt.show()
/tmp/ipykernel_17797/3164938096.py:17: UserWarning: Matplotlib currently does not support Bengali natively.
  plt.tight_layout(); plt.show()
/tmp/ipykernel_17797/3164938096.py:17: UserWarning: Glyph 2494 (\N{BENGALI VOWEL SIGN AA}) missing from font(s) DejaVu Sans.
  plt.tight_layout(); plt.show()
/tmp/ipykernel_17797/3164938096.py:17: UserWarning: Glyph 2489 (\N{BENGALI LETTER HA}) missing from font(s) DejaVu Sans.
  plt.tight_layout(); plt.show()
/tmp/ipykernel_17797/3164938096.py:17: UserWarning: Glyph 2495 (\N{BENGALI VOWEL SIGN I}) missing from font(s) DejaVu Sans.
  plt.tight_layout(); plt.show()
/tmp/ipykernel_17797/3164938096.py:17: UserWarning: Glyph 2472 (\N{BENGALI LETTER NA}) missing from font(s) DejaVu Sans.
  plt.tight_layout(); plt.show()
/tmp/ipykernel_17797/3164938096.py:17: UserWarning: Glyph 2496 (\N{BENGALI VOWEL SIGN II}) missing from font(s) DejaVu Sans.
  plt.tight_layout(); plt.show()
/tmp/ipykernel_17797/3164938096.py:17: UserWarning: Glyph 2480 (\N{BENGALI LETTER RA}) missing from font(s) DejaVu Sans.
  plt.tight_layout(); plt.show()
/tmp/ipykernel_17797/3164938096.py:17: UserWarning: Glyph 6018 (\N{KHMER LETTER KO}) missing from font(s) DejaVu Sans.
  plt.tight_layout(); plt.show()
/tmp/ipykernel_17797/3164938096.py:17: UserWarning: Glyph 6098 (\N{KHMER SIGN COENG}) missing from font(s) DejaVu Sans.
  plt.tight_layout(); plt.show()
/tmp/ipykernel_17797/3164938096.py:17: UserWarning: Glyph 6042 (\N{KHMER LETTER RO}) missing from font(s) DejaVu Sans.
  plt.tight_layout(); plt.show()
/tmp/ipykernel_17797/3164938096.py:17: UserWarning: Glyph 6079 (\N{KHMER VOWEL SIGN YA}) missing from font(s) DejaVu Sans.
  plt.tight_layout(); plt.show()
/tmp/ipykernel_17797/3164938096.py:17: UserWarning: Glyph 6020 (\N{KHMER LETTER NGO}) missing from font(s) DejaVu Sans.
  plt.tight_layout(); plt.show()
/tmp/ipykernel_17797/3164938096.py:17: UserWarning: Glyph 32427 (\N{CJK UNIFIED IDEOGRAPH-7EAB}) missing from font(s) DejaVu Sans.
  plt.tight_layout(); plt.show()
/tmp/ipykernel_17797/3164938096.py:17: UserWarning: Glyph 45729 (\N{HANGUL SYLLABLE NEUB}) missing from font(s) DejaVu Sans.
  plt.tight_layout(); plt.show()
/tmp/ipykernel_17797/3164938096.py:17: UserWarning: Glyph 127820 (\N{BANANA}) missing from font(s) DejaVu Sans.
  plt.tight_layout(); plt.show()
/tmp/ipykernel_17797/3164938096.py:17: UserWarning: Glyph 127823 (\N{GREEN APPLE}) missing from font(s) DejaVu Sans.
  plt.tight_layout(); plt.show()
/tmp/ipykernel_17797/3164938096.py:17: UserWarning: Glyph 129373 (\N{KIWIFRUIT}) missing from font(s) DejaVu Sans.
  plt.tight_layout(); plt.show()
/tmp/ipykernel_17797/3164938096.py:17: UserWarning: Glyph 127825 (\N{PEACH}) missing from font(s) DejaVu Sans.
  plt.tight_layout(); plt.show()
/tmp/ipykernel_17797/3164938096.py:17: UserWarning: Glyph 127816 (\N{MELON}) missing from font(s) DejaVu Sans.
  plt.tight_layout(); plt.show()
/tmp/ipykernel_17797/3164938096.py:17: UserWarning: Glyph 127822 (\N{RED APPLE}) missing from font(s) DejaVu Sans.
  plt.tight_layout(); plt.show()
/tmp/ipykernel_17797/3164938096.py:17: UserWarning: Glyph 127817 (\N{WATERMELON}) missing from font(s) DejaVu Sans.
  plt.tight_layout(); plt.show()
/tmp/ipykernel_17797/3164938096.py:17: UserWarning: Glyph 127818 (\N{TANGERINE}) missing from font(s) DejaVu Sans.
  plt.tight_layout(); plt.show()
/tmp/ipykernel_17797/3164938096.py:17: UserWarning: Glyph 127824 (\N{PEAR}) missing from font(s) DejaVu Sans.
  plt.tight_layout(); plt.show()
/tmp/ipykernel_17797/3164938096.py:17: UserWarning: Glyph 127815 (\N{GRAPES}) missing from font(s) DejaVu Sans.
  plt.tight_layout(); plt.show()
/home/mac/knowledge_base/.venv/lib/python3.14/site-packages/IPython/core/pylabtools.py:170: UserWarning: Glyph 2476 (\N{BENGALI LETTER BA}) missing from font(s) DejaVu Sans.
  fig.canvas.print_figure(bytes_io, **kw)
/home/mac/knowledge_base/.venv/lib/python3.14/site-packages/IPython/core/pylabtools.py:170: UserWarning: Matplotlib currently does not support Bengali natively.
  fig.canvas.print_figure(bytes_io, **kw)
/home/mac/knowledge_base/.venv/lib/python3.14/site-packages/IPython/core/pylabtools.py:170: UserWarning: Glyph 2494 (\N{BENGALI VOWEL SIGN AA}) missing from font(s) DejaVu Sans.
  fig.canvas.print_figure(bytes_io, **kw)
/home/mac/knowledge_base/.venv/lib/python3.14/site-packages/IPython/core/pylabtools.py:170: UserWarning: Glyph 2489 (\N{BENGALI LETTER HA}) missing from font(s) DejaVu Sans.
  fig.canvas.print_figure(bytes_io, **kw)
/home/mac/knowledge_base/.venv/lib/python3.14/site-packages/IPython/core/pylabtools.py:170: UserWarning: Glyph 2495 (\N{BENGALI VOWEL SIGN I}) missing from font(s) DejaVu Sans.
  fig.canvas.print_figure(bytes_io, **kw)
/home/mac/knowledge_base/.venv/lib/python3.14/site-packages/IPython/core/pylabtools.py:170: UserWarning: Glyph 2472 (\N{BENGALI LETTER NA}) missing from font(s) DejaVu Sans.
  fig.canvas.print_figure(bytes_io, **kw)
/home/mac/knowledge_base/.venv/lib/python3.14/site-packages/IPython/core/pylabtools.py:170: UserWarning: Glyph 2496 (\N{BENGALI VOWEL SIGN II}) missing from font(s) DejaVu Sans.
  fig.canvas.print_figure(bytes_io, **kw)
/home/mac/knowledge_base/.venv/lib/python3.14/site-packages/IPython/core/pylabtools.py:170: UserWarning: Glyph 2480 (\N{BENGALI LETTER RA}) missing from font(s) DejaVu Sans.
  fig.canvas.print_figure(bytes_io, **kw)
/home/mac/knowledge_base/.venv/lib/python3.14/site-packages/IPython/core/pylabtools.py:170: UserWarning: Glyph 6018 (\N{KHMER LETTER KO}) missing from font(s) DejaVu Sans.
  fig.canvas.print_figure(bytes_io, **kw)
/home/mac/knowledge_base/.venv/lib/python3.14/site-packages/IPython/core/pylabtools.py:170: UserWarning: Glyph 6098 (\N{KHMER SIGN COENG}) missing from font(s) DejaVu Sans.
  fig.canvas.print_figure(bytes_io, **kw)
/home/mac/knowledge_base/.venv/lib/python3.14/site-packages/IPython/core/pylabtools.py:170: UserWarning: Glyph 6042 (\N{KHMER LETTER RO}) missing from font(s) DejaVu Sans.
  fig.canvas.print_figure(bytes_io, **kw)
/home/mac/knowledge_base/.venv/lib/python3.14/site-packages/IPython/core/pylabtools.py:170: UserWarning: Glyph 6079 (\N{KHMER VOWEL SIGN YA}) missing from font(s) DejaVu Sans.
  fig.canvas.print_figure(bytes_io, **kw)
/home/mac/knowledge_base/.venv/lib/python3.14/site-packages/IPython/core/pylabtools.py:170: UserWarning: Glyph 6020 (\N{KHMER LETTER NGO}) missing from font(s) DejaVu Sans.
  fig.canvas.print_figure(bytes_io, **kw)
/home/mac/knowledge_base/.venv/lib/python3.14/site-packages/IPython/core/pylabtools.py:170: UserWarning: Glyph 32427 (\N{CJK UNIFIED IDEOGRAPH-7EAB}) missing from font(s) DejaVu Sans.
  fig.canvas.print_figure(bytes_io, **kw)
/home/mac/knowledge_base/.venv/lib/python3.14/site-packages/IPython/core/pylabtools.py:170: UserWarning: Glyph 45729 (\N{HANGUL SYLLABLE NEUB}) missing from font(s) DejaVu Sans.
  fig.canvas.print_figure(bytes_io, **kw)
/home/mac/knowledge_base/.venv/lib/python3.14/site-packages/IPython/core/pylabtools.py:170: UserWarning: Glyph 127820 (\N{BANANA}) missing from font(s) DejaVu Sans.
  fig.canvas.print_figure(bytes_io, **kw)
/home/mac/knowledge_base/.venv/lib/python3.14/site-packages/IPython/core/pylabtools.py:170: UserWarning: Glyph 127823 (\N{GREEN APPLE}) missing from font(s) DejaVu Sans.
  fig.canvas.print_figure(bytes_io, **kw)
/home/mac/knowledge_base/.venv/lib/python3.14/site-packages/IPython/core/pylabtools.py:170: UserWarning: Glyph 129373 (\N{KIWIFRUIT}) missing from font(s) DejaVu Sans.
  fig.canvas.print_figure(bytes_io, **kw)
/home/mac/knowledge_base/.venv/lib/python3.14/site-packages/IPython/core/pylabtools.py:170: UserWarning: Glyph 127825 (\N{PEACH}) missing from font(s) DejaVu Sans.
  fig.canvas.print_figure(bytes_io, **kw)
/home/mac/knowledge_base/.venv/lib/python3.14/site-packages/IPython/core/pylabtools.py:170: UserWarning: Glyph 127816 (\N{MELON}) missing from font(s) DejaVu Sans.
  fig.canvas.print_figure(bytes_io, **kw)
/home/mac/knowledge_base/.venv/lib/python3.14/site-packages/IPython/core/pylabtools.py:170: UserWarning: Glyph 127822 (\N{RED APPLE}) missing from font(s) DejaVu Sans.
  fig.canvas.print_figure(bytes_io, **kw)
/home/mac/knowledge_base/.venv/lib/python3.14/site-packages/IPython/core/pylabtools.py:170: UserWarning: Glyph 127817 (\N{WATERMELON}) missing from font(s) DejaVu Sans.
  fig.canvas.print_figure(bytes_io, **kw)
/home/mac/knowledge_base/.venv/lib/python3.14/site-packages/IPython/core/pylabtools.py:170: UserWarning: Glyph 127818 (\N{TANGERINE}) missing from font(s) DejaVu Sans.
  fig.canvas.print_figure(bytes_io, **kw)
/home/mac/knowledge_base/.venv/lib/python3.14/site-packages/IPython/core/pylabtools.py:170: UserWarning: Glyph 127824 (\N{PEAR}) missing from font(s) DejaVu Sans.
  fig.canvas.print_figure(bytes_io, **kw)
/home/mac/knowledge_base/.venv/lib/python3.14/site-packages/IPython/core/pylabtools.py:170: UserWarning: Glyph 127815 (\N{GRAPES}) missing from font(s) DejaVu Sans.
  fig.canvas.print_figure(bytes_io, **kw)

../../_images/4657771688a4eaa8e0f032d27bfa837d01e02bf24e565699805104afe86ef618.png

Top promoted tokens: ['🍇', '🍐', '🍊', '🍉', '🍎', '🍈', '🍑', '🥝', '🍏', '🍌']

The positive logits are fruit emojis — 🍇 🍐 🍊 🍉 🍎 … — so at the output level too this reads as a “fruit” feature: when it fires it leans the model slightly toward fruit emoji (only slightly — see the modest ±2.3 range in Panel B). Our reconstructed values match Neuronpedia’s pos_str to two decimals, because we fold the RMSNorm gain exactly as they do.

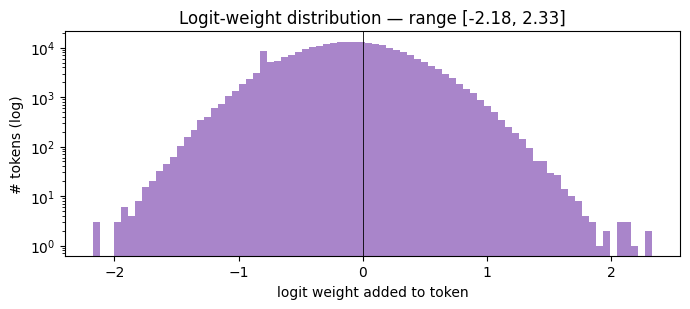

Panel B — Logits histogram & “logit effect range”#

The little histogram under the logit tables is just the distribution of those vocab logit weights across all ~262k tokens. It’s near-symmetric and centered at zero; the range (min → max) is the dashboard’s “logit effect” span. A heavy, lopsided tail means a latent strongly pushes a coherent set of tokens; a narrow blob means little direct output effect. At ±2.3, 7447 is on the modest side — a mid-layer feature whose effect is mostly routed through the later layers, not written straight to the logits.

lw = logit_w.cpu().numpy()
plt.figure(figsize=(7, 3.2))
plt.hist(lw, bins=80, color="tab:purple", alpha=0.8)
plt.axvline(0, color="k", lw=.6)
plt.title(f"Logit-weight distribution — range [{lw.min():.2f}, {lw.max():.2f}]")
plt.xlabel("logit weight added to token"); plt.ylabel("# tokens (log)"); plt.yscale("log")
plt.tight_layout(); plt.show()
print(f"logit effect range: {lw.min():.3f} … {lw.max():.3f}   (Neuronpedia: -2.176 … +2.333)")

../../_images/e0f025d7eba047a184ae7b73fb9f38aba6660f5d36bc2f7e47dbb1a403578413.png

logit effect range: -2.176 … 2.332   (Neuronpedia: -2.176 … +2.333)

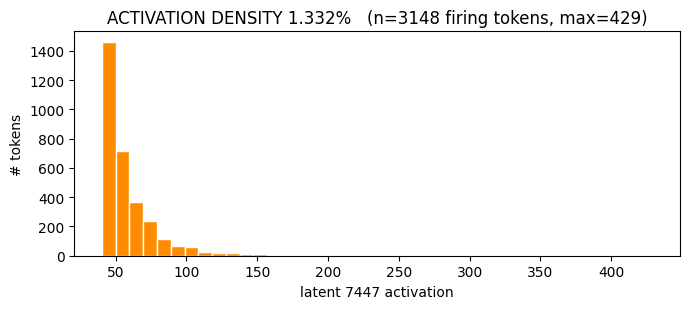

Panel C — Activation density#

The header’s activation density (Neuronpedia: frac_nonzero ≈ 1.05%) is simply the fraction of tokens on which the latent fires, and the orange histogram is the distribution of its positive activation values. We estimate both by streaming a text corpus (a slice of The Pile, the same distribution GemmaScope trained on) through model + SAE and collecting latent 7447’s activations. We drop the BOS token, whose residual is a huge outlier that would distort everything.

from datasets import load_dataset
ds = load_dataset("monology/pile-uncopyrighted", split="train", streaming=True); it = iter(ds)
def next_texts(n):
    out = []
    while len(out) < n:
        ex = next(it)
        if len(ex["text"]) > 200: out.append(ex["text"])
    return out

SEQ, BATCH, NBATCH = 128, 64, 30
acts_L, seq_records, n_tok = [], [], 0
for _ in range(NBATCH):
    enc = tok(next_texts(BATCH), return_tensors="pt", truncation=True, max_length=SEQ, padding="max_length")
    ids = enc.input_ids.to(DEV); am = enc.attention_mask.to(DEV)
    a = sae.encode(resid_of(ids, am))[..., LATENT]          # [B, T]
    for i in range(ids.shape[0]):
        m = am[i].bool() & (ids[i] != tok.bos_token_id)      # keep real tokens, drop pads + BOS
        av = a[i][m]; acts_L.append(av.cpu()); n_tok += int(m.sum())
        seq_records.append((av.max().item(), ids[i][m].cpu().tolist(), av.cpu().tolist()))
acts_L = torch.cat(acts_L)
density = (acts_L > 0).float().mean().item()
print(f"{n_tok} tokens | activation density = {density:.3%}   (Neuronpedia: 1.05%)")

pos = acts_L[acts_L > 0].numpy()
plt.figure(figsize=(7, 3.2))
plt.hist(pos, bins=40, color="darkorange", edgecolor="white")
plt.title(f"ACTIVATION DENSITY {density:.3%}   (n={len(pos)} firing tokens, max={acts_L.max():.0f})")
plt.xlabel("latent 7447 activation"); plt.ylabel("# tokens")
plt.tight_layout(); plt.show()

236370 tokens | activation density = 1.332%   (Neuronpedia: 1.05%)

../../_images/fd7c77238e539b6bf3fe2eecd56e81b8a16efce6454533fc0d9c4f0fae55d643.png

Our density (~1.3%) is close to Neuronpedia’s 1.05% — a touch higher because our short 128-token windows over-weight fruit-dense passages (a different, smaller corpus slice). The activation histogram has the same shape as the dashboard’s: a big pile of small activations and a long tail of strong ones.

Panel D — Top activating examples (with the token heatmap)#

The centerpiece of any dashboard: the sequences where the latent fires hardest, with each token shaded by its activation. This is usually the single most informative panel for guessing what a feature means. We sort our collected sequences by their peak activation and render the top few, colouring every token by its activation (this is exactly the heatmap Neuronpedia draws).

def heatmap_html(records, top_n=8, ctx=12):
    vmax = max(r[0] for r in records)
    rows = []
    for maxact, ids_row, avals in sorted(records, key=lambda r: -r[0])[:top_n]:
        j = int(np.argmax(avals)); lo, hi = max(0, j-ctx), min(len(ids_row), j+ctx+1)
        spans = []
        for k in range(lo, hi):
            t = tok.decode([ids_row[k]]).replace("\n", "⏎")
            alpha = max(0.0, avals[k]) / vmax
            style = f"background:rgba(255,140,0,{alpha:.3f});" + ("font-weight:700;outline:1px solid #c60;" if k == j else "")
            spans.append(f"<span style='{style}padding:1px 0'>{t}</span>")
        rows.append(f"<tr><td style='text-align:right;color:#888;padding-right:8px'>{maxact:6.1f}</td>"
                    f"<td style='font-family:monospace;white-space:pre-wrap'>{''.join(spans)}</td></tr>")
    return HTML("<table style='border-collapse:collapse'>"
                "<tr><th>act</th><th style='text-align:left'>sequence (peak token outlined)</th></tr>"
                + "".join(rows) + "</table>")

display(heatmap_html(seq_records, top_n=8))

act	sequence (peak token outlined)
429.1	and poultry, seafood, milk and dairy products including cheese, fruit, vegetables and vegetable oil-based products from the U.
324.6	Q:⏎⏎Apple rejected an app that for use on non public api where there
320.8	Suplumfiftythree’ is characterized by having large, juicy fruit with black skin and red flesh. The fruit of the new
298.1	Apple stores your Siri queries for up to two years⏎⏎Apple keeps
298.1	Apple Releases macOS Mojave 10.14.5 Beta
272.4	for Windows and Linux. There is also an upcoming version for Apple users that has yet to be released
272.1	zone. It is available now via Google Playstore and the Apple store.⏎⏎The app launched in Korea in 20
272.0	Introduction⏎⏎Replace the Oil with Unsweetened Applesauce to make these Waffles perfect in taste as well as

Now the honest twist. Yes, it fires on fruit (the sanity check lit up on bananas, grapes and the emojis) — but scan the actual top rows: most peak on “Apple” the company (macOS, Siri, the App Store), not the fruit. So 7447 blends a real fruit sense with the surface token “apple”, company and all. That’s the interpretability illusion live: the fruit-emoji logits and a quick glance make it look like a clean “fruit” detector, while the max-activating panel shows the messier truth. Only hypothesis-testing (ablation, steering) pins down the real trigger.

Panel E — Top features by decoder cosine similarity#

The dashboard’s “similar features” list ranks other latents by the cosine similarity of their decoder directions, \(\cos(W_{\text{dec}}[i], W_{\text{dec}}[j])\). Nearby latents tend to be semantically related — this is how you spot feature splitting (one concept sliced into several fine-grained latents) and feature absorption. Let’s find 7447’s neighbours and check what they promote via the same logit lens.

Wd = F.normalize(sae.W_dec.float(), dim=-1)
cos = Wd[LATENT] @ Wd.T
vals, idx = cos.topk(9)                      # [0] is itself
def top_tokens(i, k=6):
    dl = (sae.W_dec[i].float() * (1.0 + normw)) @ W_U
    return [tok.decode([t]) for t in dl.topk(k).indices.tolist()]
print(f"decoder-cosine neighbours of latent {LATENT}:")
for v, i in zip(vals[1:].tolist(), idx[1:].tolist()):
    print(f"  latent {i:5d}  cos={v:.3f}   promotes → {top_tokens(i)}")

decoder-cosine neighbours of latent 7447:
  latent 10116  cos=0.169   promotes → ['𝚕', '𝚍', '𝚊', 'يبة', ' Defenders', '𝚜']
  latent  4613  cos=0.163   promotes → ['<bos>', ' entgegen', '고사', '阌', '른', '땄']
  latent  7442  cos=0.153   promotes → ['a', 'i', 'ه', 'া', 'й', 'aing']
  latent  1111  cos=0.148   promotes → ['<bos>', 'ী', 'th', '\uf0e5', 'CGFloat', 'वीं']
  latent  9654  cos=0.147   promotes → ['ত্ব', '𝘦', '颊', 'ार्किक', '袢', '𝕣']
  latent 15597  cos=0.145   promotes → ['۰۰', '𝘭', '𝗹', 'dır', 'י', '𝘴']
  latent  3318  cos=0.145   promotes → ['u', '不及', 'reverse', 'ตรฐาน', 'pling', ' undone']
  latent  9105  cos=0.142   promotes → [' المل', ' ألف', ' والذي', ' Eg', ' شنو', ' Aks']

Here’s an honest result worth dwelling on: 7447’s top decoder cosine is only ~0.17 — it has no close decoder twins in this SAE. Its direction is fairly isolated, which is what you’d expect for a crisp, well-separated concept like “fruit”. This is exactly when the panel is most useful by its absence: on features that do split (say, a generic “number” feature that’s been carved into “years”, “prices”, “list indices”), you’d instead see a tight cluster of high-cosine (0.4–0.8) neighbours that all promote related tokens. Low cosine here = one clean feature, not a shattered one. (Neuronpedia doesn’t pre-compute this list for this SAE, so it’s a panel we add ourselves — cheap, since it’s weights-only.)

What we skipped, and why#

DFA (Direct Feature Attribution). On attention-SAE dashboards there’s an extra panel showing which source tokens an attention feature reads from. Ours is a residual-stream SAE, so there’s no attention pattern to attribute — DFA doesn’t apply here.
Autointerp / the text explanation (“this feature fires on fruit”). That label is generated by an LLM reading the max-activating-examples panel we just built, then optionally scored by predicting activations on held-out text. It’s a whole pipeline of its own; we sketch it at the end of Part 4.
Steering / test panel. Neuronpedia lets you add the feature direction to a forward pass and watch the output change (e.g. steer toward fruit) — we have the ingredient (\(W_{\text{dec}}[i]\)); wiring up generation is a short exercise.

Recap & what’s next#

Every panel on that dashboard is a simple function of (a) the SAE weights — top/negative logits, the logits histogram, cosine neighbours — or (b) the SAE run over a corpus — activation density and the max-activating-examples heatmap. Nothing is magic; you now know how to compute all of it, and you verified it against the real page for the fruit feature.

Next → Part 4: Training our own JumpReLU SAE on Gemma 3 1B at this same layer 13, from a Pile subset — activation collection, the training loop with L0 targeting and dead-latent resampling, evaluation (L0 / variance-explained / loss-recovered), and a look at the features it discovers.
